    • Ultrasonic Disruptor
    • DH88-IIN
    • Power 250W, Crushing Capacity 10-200ml
    • DH88-IIN
    • Ultrasonic Disruptor
    • Power 250W, Crushing Capacity 10-200ml

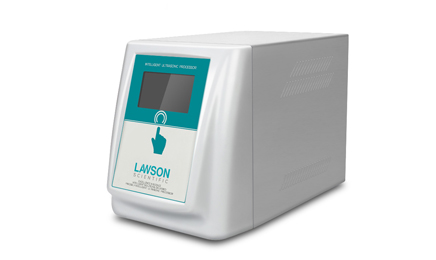

    Ultrasonic Disruptor DH88-IIN, is a multifunctional and versatile instrument that utilizes strong ultrasound to generate cavitation effects in liquids and carry out ultrasonic processing of materials. It can be used for the disruption of various animal and plant cells, virus cells, as well as for emulsification, separation, homogenization, extraction, defoaming, cleaning, and acceleration of chemical reactions, among others.
    Product Introduction
    Ultrasonic Disruptor DH88-IIN, is a multifunctional and versatile instrument that utilizes strong ultrasound to generate cavitation effects in liquids and carry out ultrasonic processing of materials. It can be used for the disruption of various animal and plant cells, virus cells, as well as for emulsification, separation, homogenization, extraction, defoaming, cleaning, and acceleration of chemical reactions, among others.


    Product Features
    ◆Used for the crushing of animal and plant cells, bacteria, spores or tissues, extracting proteins from cells, and conducting scientific cultivation experiments of viruses and vaccines.
    ◆Accelerates the reaction rate of chemical and physical reactions, and accelerates liquid degassing.
    ◆Used for scientific research analysis, such as dilution of crude oil, oil-water emulsification, accelerated decrystallization, glass pulp homogenization, etc.
    ◆Disperses rare earth minerals, various inorganic minerals, and prepares homogenized mixtures of latex particles with near-nanometer sizes.
    ◆Quickly and strongly washes fluids in mold microholes and blind holes.


    Experimental Objectives
    1. Understand the basic principles of ultrasonic cell crushing.
    2. Master the basic techniques of ultrasonic cell crushing.


    Experimental Principle
    When strong sound waves act on a solution, the cavitation phenomenon of bubble formation, growth, and rupture is caused. The shock waves and shear forces caused by cavitation lead to the lysis of cells.


    Materials and Reagents
    10ml bacterial culture, beaker, ice shaver, 75% alcohol cotton ball.


    Technical Parameters
    Model: DH88-IIN
    Frequency: 20-25KHz
    Power: 250W
    Standard Amplitude Bar: Φ6
    Optional Amplitude Bars: Φ2, 3
    Crushing Capacity: 0.5-200ml
    Duty Cycle: 1-99%
    Power Supply: 220/110V 50Hz/60Hz
    Power Supply Chassis Dimensions: 400×280×220mm
    Net Weight: 12.1kg
    Mainframe + Transducer Weight: 14kg
    Outer Package Dimensions: 534×295×435mm


    Probe Model Selection
    Model Cell Disruption Capacity
    Φ2mm 150ul-5ml
    Φ3mm 200ul-10ml
    Φ6mm 10ml-200ml


    Single Page - Color Page
    Name: Author: Action:
    Ultrasonic Disruptor DH88-IIN Ultrasonic Download


    Related products
    Name: Model:
    Ultrasonic Cell processor DH92-IIN
    Ultrasonic Disruptor DH88-IIN
    Ultrasonic Tissue Homogenizer DH96-IIN
    Product List
    DH88-IIN Unit
    Host Machine Unit
    Vibration System (Transducer Assembly) Set
    Soundproof box set
    Cross clamp (inside the soundproof box) piece
    Test tube clamp (inside the soundproof box) piece
    Special Wrench (used for disassembling the amplitu Set
    Fuses piece
    Power cord piece
    User manual copy
    Warranty card copy
    Certificate of qualification copy
    Description
    1
    1
    1
    1
    1
    1
    8A, 5A each 2
    1
    1
    1
    1
