    • Ultrasonic cell homogenizer
      •

    • DH98-IIIE
      •

    • 1000W power, crushing capacity of 0.5-700ml
      •











    • DH98-IIIE
      •

    • Ultrasonic cell homogenizer
      •

    • 1000W power, crushing capacity of 0.5-700ml
      •

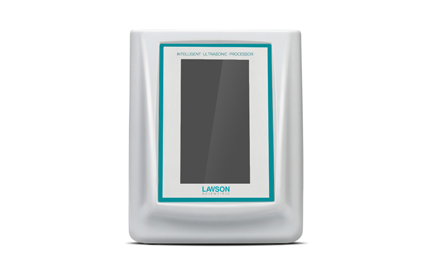

                        Ultrasonic cell homogenizer DH98-IIIE, is a versatile and multi-purpose instrument that utilizes strong ultrasound to generate cavitation effects in liquids for ultrasonic processing of substances. It can be used for crushing various animal and plant cells, virus cells, as well as emulsifying, separating, homogenizing, extracting, defoaming, cleaning, and accelerating chemical reactions, among others.




















						Product Introduction





						Ultrasonic cell homogenizer DH98-IIIE, is a versatile and multi-purpose instrument that utilizes strong ultrasound to generate cavitation effects in liquids for ultrasonic processing of substances. It can be used for crushing various animal and plant cells, virus cells, as well as emulsifying, separating, homogenizing, extracting, defoaming, cleaning, and accelerating chemical reactions, among others.





















							Product Features





							◆7-inch large screen display for more intuitive parameter display and more convenient touch operation





							◆Display of simulated data waveform of ultrasonic power and time width





							◆Rich functions: cell crushing, homogenization, separation, extraction, defoaming, cleaning and acceleration of chemical reactions





							◆Alarm function: time, overload, no-load, and over-temperature





							◆Customizable settings for ultrasonic time, interval time, total time, and power ratio





							◆Easy operation: centrally controlled by microcomputer for optimized user experience





							◆Low noise: equipped with soundproof box to reduce noise disturbance





							◆Long operation time: supports continuous operation for more than 1 hour





















								Experimental Objectives





								1. Understand the basic principles of ultrasonic cell crushing.





								2. Master the basic techniques of ultrasonic cell crushing.





















									Experimental Principle





									When strong sound waves act on a solution, the cavitation phenomenon of bubble formation, growth, and rupture is caused. The shock waves and shear forces caused by cavitation lead to the lysis of cells.





















										Materials and Reagents





										10ml bacterial culture, beaker, ice shaver, 75% alcohol cotton ball.





















											Technical Parameters







											Model:

											DH98-IIIE





											Frequency:

											20-25KHz (automatic tracking)





											Power:

											950W





											Random amplitude bar:

											Φ6





											Optional amplitude bar:

											Φ2, 3, 10, 15





											Crushing capacity:

											0.5-700ml





											Duty ratio:

											1-99%





											Screen size:

											7 inch





											Screen material:

											HD TFT touch screen





											Single ultrasound time:

											0.1-99.9s





											Single interval time:

											0.1-99.9s





											Total time:

											1-99H59M59S





											Temperature control function*:

											Yes (automatically pause ultrasound when preset temperature is reached)





											Technical Parameters







											Model:

											DH98-IIIE





											Frequency:

											20-25KHz (automatic tracking)





											Power:

											950W





											Random Amplitude Rod:

											Φ6





											Optional Amplitude Rod:

											Φ2, 3, 10, 15





											Crushing Capacity:

											0.5-700ml





											Duty Ratio:

											1-99%





											Screen Size:

											7 inches





											Screen Material:

											High-definition TFT touch screen





											Single Ultrasonic Time:

											0.1-99.9s





											Single Interval Time:

											0.1-99.9s





											Total Time:

											1-99H59M59S





											Temperature Control Function*:

											Yes (automatic pause of ultrasound when reaching preset temperature)





											Optional Functions:

											Computer communication + remote control + user password protection + data printing + automatic lifting sound insulation box + lighting or sterilization





											Data Storage:

											20 sets





											Power Supply:

											220/110V 50Hz/60Hz





											Power Supply Housing Size:

											410*225*290mm





											Sound Insulation Box Size:

											470*305*430mm





											Net Weight:

											15.1kg





											Main Engine + Transducer Weight:

											17kg





											Outer Packaging Size:

											534×295×435mm

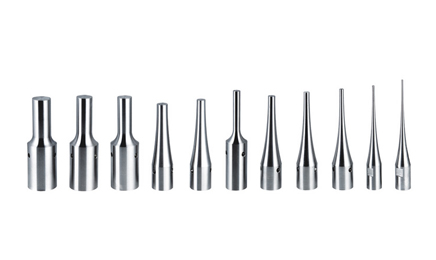

												Probe Model Selection







												Model

												Broken Cell Capacity





												Φ2mm

												150ul－5ml





												Φ3mm

												200ul－10ml





												Φ6mm

												10ml－200ml





												Φ10mm

												50ml－500ml





												Φ12mm

												50ml－700ml





















													Single Page - Color Page









													Name:

													Author:

													Action:





													Ultrasonic cell homogenizer DH98-IIIE

													Ultrasonic

													Download





















														Related products







														Name:

														Model:





														Ultrasonic Tissue Homogenizer

														DH98-IIIDE





														Ultrasonic cell homogenizer

														DH98-IIIE





														ultrasonic cell processors

														DH92-IIDE
































	Product List












                	        DH98-IIIE
                            Unit





                	            Host Machine
                                Unit





                	            Vibration System (Transducer Assembly)
                                Set





                	            Soundproof box
                                set





                	            Cross clamp (inside the soundproof box)
                                piece





                	            Test tube clamp (inside the soundproof box)
                                piece





                	            Special Wrench (used for disassembling the amplitu
                                Set





                	            Fuses
                                piece





                	            Power cord
                                piece





                	            User manual
                                copy





                	            Warranty card
                                copy





                	            Certificate of qualification
                                copy






















    Description


    1
    1
    1
    1
    1
    1
    8A, 5A each 2
    1
    1
    1
