    • ultrasonic homogenizer
      •

    • DH98-IIIDN
      •

    • Power 1200W, crushing capacity 0.5-1000ml
      •











    • DH98-IIIDN
      •

    • ultrasonic homogenizer
      •

    • Power 1200W, crushing capacity 0.5-1000ml
      •

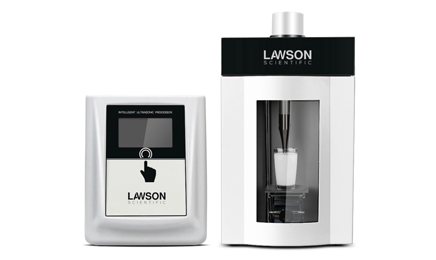

                        Ultrasonic homogenizer DH98-IIIDN can safely process various organic and inorganic materials from 500 microliters up to 1 liter*. Typical applications include nanotechnology (production of nanoparticle materials and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP assays, emulsification, deagglomeration and disaggregation, as well as applications in sonochemistry and liquid processing.




















						Product Introduction





						DH98-IIIDN ultrasonic homogenizer can safely process various organic and inorganic materials from 500 microliters to 1 liter*. Typical applications include nanotechnology (production of nanomaterials and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP assay, emulsification, dispersion and deagglomeration, as well as applications in sonochemistry liquid processing.





















							Product Features





							◆Used for crushing cells, bacteria, spores, or tissue of animals and plants, extracting proteins from cells, and conducting scientific cultivation experiments of viruses and vaccines.





							◆Accelerates reaction rates in chemistry, physics, and other fields, and accelerates liquid dehydration.





							◆Used for scientific research analysis of crude oil dilution, oil-water emulsification, accelerating decrystallization, and glass pulp homogenization.





							◆Used for dispersing rare earths, various inorganic minerals, and preparing homogeneous mixtures with a particle size close to nanometers.





							◆Used for rapid and strong high-precision cleaning of mold micropores and blind holes.





















								Objective





								1. Understand the basic principles of ultrasonic cell disruption.





								2. Master the basic techniques of ultrasonic cell disruption.





















									Applicable Industries:







									Biotechnology Industry:

									Such as essential oil extraction, natural pigment extraction, polysaccharide extraction, flavonoid extraction, alkaloid extraction, polyphenol extraction, organic acid extraction, and fat extraction





									Laboratory Applications:

									Cell disruption, product grinding, material dispersion (preparation of suspensions), and aggregation





									Chemical Industry:

									Ultrasonic emulsification and homogenization, ultrasonic gel liquefaction, and resin defoaming





									Biodiesel Production Industry:

									Ultrasonic technology significantly enhances various chemical reactions in various chemical production processes





									Water Treatment Industry:

									Degradation of polluted water quality





									Food and Cosmetics Industry:

									Pureification of wines, refinement of cosmetic particles, and preparation of nano-particles





									Graphene Industry:

									Graphene dispersion and preparation of graphene nano-particles





















										Technical Parameters







										Model:

										DH98-IIIDN





										Frequency:

										20-25KHz





										Power:

										1200W





										Standard Amplitude:

										Φ15





										Optional Amplitude:

										Φ2, Φ3, Φ10, Φ20





										Crushing Capacity:

										0.5-1200ml





										Duty Ratio:

										1-99%





										Power Supply:

										220/110V 50Hz/60Hz





										Power Supply Chassis Size:

										400×280×220mm





										Net Weight:

										12.6kg





										Main Unit + Transducer Weight:

										14.5kg





										Package Size:

										534×295×435mm





















											Probe Model Selection







											Model

											Broken Cell Capacity





											Φ2mm

											150ul－5ml





											Φ3mm

											200ul－10ml





											Φ6mm

											10ml－150ml





											Φ10mm

											10ml－500ml





											Φ15mm

											50ml－1000ml





											Φ20mm

											50ml－1200ml





















												Single Page - Color Page









												Name:

												Author:

												Action:





												ultrasonic homogenizer DH98-IIIDN

												Ultrasonic

												Download





















													Related products







													Name:

													Model:





													Ultrasonic graphene exfoliation

													DH99-IIDN





													ultrasonic homogenizer

													DH98-IIIDN






























	Product List












                	        DH98-IIIDN
                            Unit





                	            Host Machine
                                Unit





                	            Vibration System (Transducer Assembly)
                                Set





                	            Soundproof box
                                set





                	            Cross clamp (inside the soundproof box)
                                piece





                	            Test tube clamp (inside the soundproof box)
                                piece





                	            Special Wrench (used for disassembling the amplitu
                                Set





                	            Fuses
                                piece





                	            Power cord
                                piece





                	            User manual
                                copy





                	            Warranty card
                                copy





                	            Certificate of qualification
                                copy






















    Description


    1
    1
    1
    1
    1
    1
    8A, 5A each 2
    1
    1
    1
    1
