    • SONICS Ultrasonic Homogenizer
      •

    • VC50
      •

    • Power 50W, standard amplitude rod handling capacity 0.5ml to 15ml.
      •











    • VC50
      •

    • SONICS Ultrasonic Homogenizer
      •

    • Power 50W, standard amplitude rod handling capacity 0.5ml to 15ml.
      •

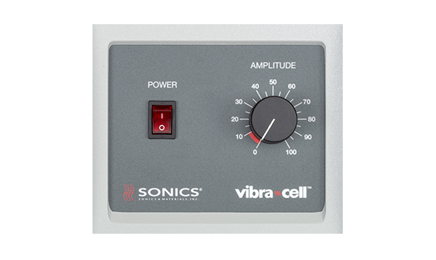

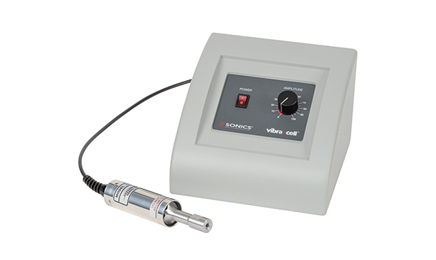

                        SONICS Ultrasonic Homogenizer VC 50 is a small and compact 50-watt ultrasonic processor. The ultrasonic energy can be activated by gripping the probe and turning the amplitude knob on the front panel. It includes a 1/8" probe (0.5-15mL volume) and offers various accessories for different applications and sample volumes.




















						Product Introduction





						SONICS Ultrasonic VC 50 is a small and compact 50-watt ultrasonic processor. The ultrasonic energy can be activated by gripping the probe and turning the amplitude knob on the front panel. It includes a 1/8" probe (0.5-15mL volume) and offers various accessories for different applications and sample volumes.





















							Product Features





							◆Compact design





							◆Adjustable power output





							◆Low cost





















								Experimental Objectives





								1. Understand the basic principles of ultrasonic cell disruption.





								2. Master the basic techniques of ultrasonic cell disruption.





















									Principle of Experiment





									When strong sound waves act on a solution, the cavitation phenomenon of bubble generation, growth, and rupture is related. The shock waves and shear forces caused by cavitation phenomenon cause cell lysis.





									Materials and Reagents

									10ml bacteria, beaker, crushed ice, 75% alcohol cotton ball.





















										Technical Specifications







										Model:

										VC 50





										Frequency:

										20KHz





										Power:

										50W





										Transducer model:

										CV18





										Standard amplitude probe:

										Φ3mm





										Standard amplitude probe length:

										138mm





										Amplitude probe material:

										Titanium alloy Ti-6Al-4V





										Standard amplitude probe processing capacity:

										0.5ml to 15ml





										Optional amplitude probe:

										Φ2mm





										Amplitude probe cable length:

										1.5m





										Duty cycle:

										1-99%





										Power adjustment range:

										Continuously adjustable (5-50w)





										Operating frequency range:

										Energy monitor digital wattmeter automatic tuning automatic amplitude compensation





										Power supply:

										220/110V 50Hz/60Hz or 117V, 50/60Hz if not otherwise specified





										Net weight:

										2.9kg





										Size:

										H x W x D: 8 x 8 x 5 inches (203 x 203 x 127mm)

























	Product List












                	        VC50
                            Unit





                	            Host Machine
                                Unit





                	            Toolbox
                                set





                	            Power cord
                                piece





                	            Soundproof box
                                set





                	            Special Crushing Cup
                                Piece





                	            User manual
                                copy






















    Description


    1
    1
    1
    Optional
    Optional
    1
