    • SONICS Ultrasonic Continuous Flow Cell Crusher
      •

    • VCX1500HV
      •

    • Power: 1500W, Standard amplitude bar processing capacity: 100L per hour.
      •











    • VCX1500HV
      •

    • SONICS Ultrasonic Continuous Flow Cell Crusher
      •

    • Power: 1500W, Standard amplitude bar processing capacity: 100L per hour.
      •

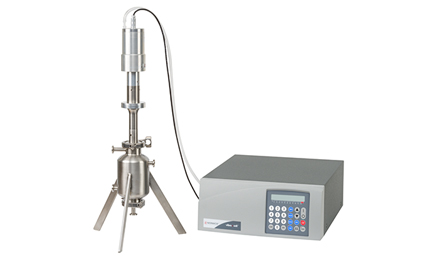

                        VCX1500HV is an ultrasonic continuous flow cell disruptor that has a power output of 1500W and a large capacity continuous flow cell. The typical production rate is 100 liters per hour, varying depending on viscosity and desired degree of processing. It is mainly used for industrial mixing, including large-scale processing of nanomaterials, and industrial processing, including emulsification, degassing, and large-scale dispersion. The flow cell is easily removable for inspection and cleaning, and is water-jacketed to cool/heat the sample during processing.




















						Product Introduction





						VCX1500HV is an SONICS Ultrasonic Continuous Flow Cell Crusher that has a power output of 1500W and a large capacity continuous flow cell. The typical production rate is 100 liters per hour, varying depending on viscosity and desired degree of processing. It is mainly used for industrial mixing, including large-scale processing of nanomaterials, and industrial processing, including emulsification, degassing, and large-scale dispersion. The flow cell is easily removable for inspection and cleaning, and is water-jacketed to cool/heat the sample during processing.





















							Product Features





							◆ Based on a flow rate of more than 20 liters





							◆ Energy and temperature set point control





							◆ Automatic tuning





							◆ Digital power meter





							◆ Full-featured process timer





							◆ Remote processing capability





















								Technical Parameters







								Model:

								VCX 1500HV





								Frequency:

								20KHz





								Power:

								1500W





								Standard Amplitude Bar:

								Φ25mm





								Standard Amplitude Bar Length:

								230mm





								Standard Amplitude Bar Processing Capacity:

								100L per hour





								Overall Dimension of Amplitude Bar:

								178 x 380 x 463.5 mm





								Material of Amplitude Bar:

								Ti-6Al-4V titanium alloy





								Optional Amplitude Bar:

								Φ25mm





								Weight of Amplitude Bar:

								1600g





								Length of Amplitude Bar Cable:

								3m





								Indoor Liquid Volume:

								500ml





								Operating Pressure:

								up to 50ps





								Duty Cycle:

								1-99%





								Power Adjustment Range:

								Continuous and adjustable (15-1500w)





								Gap Time:

								0.1-99.9s





								Temperature Protection Setting:

								Yes





								Power Amplitude Display:

								Yes





								Operating Mode:

								Gap/Continuous





								Power Supply:

								220/110V 50Hz/60Hz or 117V, 50/60Hz unless otherwise specified





								Net weight:

								9.5kg





								Weight of host and transducer:

								10.68kg





















	Product List












                	        VCX1500HV
                            Unit





                	            Host Machine
                                Unit





                	            Alternative Solid Probe for Large Capacity Continu
                                Piece





                	            Large capacity continuous circulation pool
                                set





                	            Power cord
                                piece





                	            User manual
                                copy






















    Description


    1
    1
    1
    1
    1
