    • SONICS Ultrasonic Homogenizer
      •

    • VCX2500
      •

    • Power 2500W, standard amplitude rod processing capacity of 50L or more per batch.
      •











    • VCX2500
      •

    • SONICS Ultrasonic Homogenizer
      •

    • Power 2500W, standard amplitude rod processing capacity of 50L or more per batch.
      •

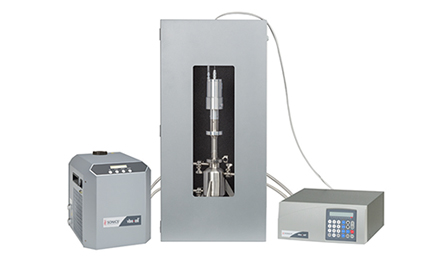

                        SONICS Ultrasonic Homogenizer VCX2500: Air-cooled converter capable of batch processing up to 50 liters. Typical applications include industrial mixing (including large-scale processing of nanomaterials) and industrial processing (including emulsification, degassing, and large-scale dispersion systems).




















						Product Introduction





						SONICS Ultrasonic Homogenizer VCX2500: Air-cooled converter capable of batch processing up to 50 liters. Typical applications include industrial mixing (including large-scale processing of nanomaterials) and industrial processing (including emulsification, degassing, and large-scale dispersion systems).





















							產品特點





							◆Batch size up to 50 liters





							◆Energy and temperature set point control





							◆Automatic tuning





							◆Digital wattmeter





							◆Full-function process timer





							◆Variable power output control





















								Technical Parameters







								Model:

								VCX 2500





								Frequency:

								20KHz





								Power:

								2500W





								Standard Horn:

								Φ38mm





								Standard Horn Length:

								370mm





								Standard Horn Processing Capacity:

								Each batch up to 50L





								Horn Overall Dimension:

								240 x 445 x 711 mm





								Horn Material:

								Titanium alloy Ti-6Al-4V





								Optional Horn:

								Φ25mm, Φ38mm





								Horn Weight:

								816g





								Horn Cable Length:

								3m





								Duty Cycle:

								1-99%





								Power Adjusting Range:

								Continuously adjustable (25-2500w)





								Gap Time:

								0.1-99.9s





								Temperature Protection Setting:

								Yes





								Power Amplitude Display:

								Yes





								Operating Mode:

								Gap/Continuous





								Power Supply:

								220/110V 50Hz/60Hz or unless otherwise specified, power requirements are 117V, 50/60Hz





								Mainframe + Converter Weight:

								21.8kg





















	Product List












                	        VCX2500
                            Unit





                	            Host Machine
                                Unit





                	            Power cord
                                piece





                	            Support Bracket
                                Set





                	            Temperature sensor
                                piece





                	            User manual
                                copy






















    Description


    1
    1
    Optional
    Optional
    1
